Multi-port Plug Valve

The Fangwen MultiPort Plug Valve is a 3-way, non-lubricated diverter valve. It features an internally epoxy coated body and an elastomer coated plug face. The concentric action allows the plug to rotate through various positions as needed for use with standard gears without the need for lifting the plug during actuation. The tapered seat and the adjustable plug assures tight shut-off service in the most severe service such as sewage, industri- al waste and slurries. The valves are designed for throttling and diverting applications and can be arranged in a number of flow combinations. They can be used in clean water, solid-laden water, viscous liquids, sludge, abra-sive and fibrous slurries.

» 100% Port Area: Assures low headloss while providing expanded passage way for solids, mini-mizing the chance of clogging.

» Conforms to Standard Tee and Cross Dimensions: Allows simplified piping layoutsand easy installation into existing piping systems.

» Externally Adjustable Plug: The 2-way thrust bearing design positions the plug in the seat for positive shut off with low operating

torque.

» Radial Bearings: Heavy duty T316 Stainless Steel and permanently lubricated for long life and lower operating torque.

» Pop Shims: Packing Overload Protection Shims protect packing by preventing overload during field adjustment.

» Plug: Fully rubber encapsulated molded plug eliminates exposed surfaces preventing corrosion and delamination.

» O-Ring Type Seating: Raised sealing bead on molded plug assures positive seating and low operating torque.

» Shaft Seals: Extends life of V-Type packing, plug shaft and bearings.

» Optional Welded Nickel Seating: Provides long life in the most severe service applications.

» Design & Manufactured to API 599, ANSI/AWWA C517, ANSI 372

» Face to Face dimensions to ASME B16.10

» Flanged Ends ANSIB16.1, Class 125.

» Mechanical Joint ANSI/AWWA C111/A21.11

» Inspect & Tested to API 598

» Sizes Ranges from 1/2” thru 24”

» Pressure Ratings from Class 150 to Class 300

» Ends Connections in Flanged R.F, MJ, Threaded NPT, BSPT, Welded S.W, B.W and Grooved

» Body Materials available in Cast or Forged Carbon Steel ASTM A216 WCB, WCC, ASTM A105N, Low Carbon Steel LCB, LCC, LF2, Alloy Steel WC6, WC9, F11, F22, Stainless Steel CF8, CF8M, CF3, CF3M, A182 F304, F304L, F316, F316L, Duplex & Super Duplex Steel A890 GR. 4A, 5A or F51, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.

» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials

» Actuations can be equipped with Handwheel, Gear Device

Fangwen offers Multi-port Plug Valves including, but not limited to

▲ 3 Way Plug Valve ▲ 4 Way Plug Valve

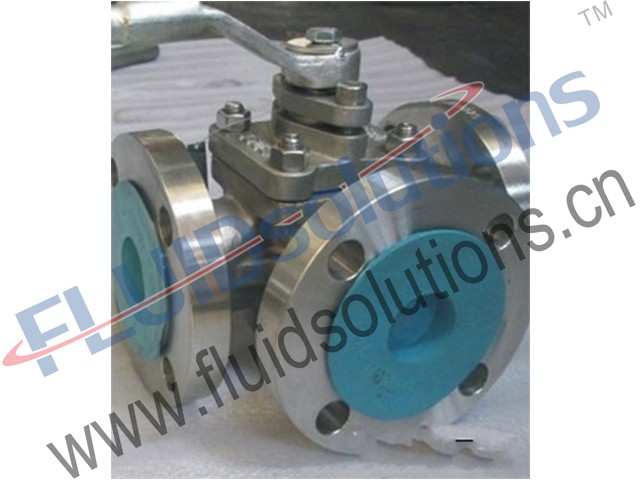

3 Way Plug Valve

Fangwen 3 Way Plug Valves are designed for throttling and diverting applications. Single- and double-tapered plug styles can be arranged into a variety of flow combinations. Heavy duty stainless steel bearings, long-life stem seal, resilient plug facings for dead-tight shutoff, and metal plugs for high temperature applications. manufacture and testing of 4 in. (100 mm) through 12 in. (300mm) 3-Way 100% Ported Tapered Plug Valves Tapered Plug Valves suitable for water or wastewater service with pressures up to 175 psig(1200 kPa) or 250 psig (1725 kPa) when specified Plug Valves shall be concentric, non-lubricated with resilient encapsulated plugs capable of 90, 180 and 360 degree worm gear actuator.

» Design & Manufactured to API 599, ANSI/AWWA C517, ANSI 372

» Face to Face dimensions to ASME B16.10 ◆ Flanged Ends ANSIB16.1, Class 125.

» Mechanical Joint ANSI/AWWA C111/A21.11

» Inspect & Tested to API 598

» Sizes Ranges from 1/2” thru 24”

» Pressure Ratings from Class 150 to Class 300

» Ends Connections in Flanged R.F, MJ, Threaded NPT, BSPT, Welded S.W, B.W and Grooved

» Body Materials available in Cast or Forged Carbon Steel ASTM A216 WCB, WCC, ASTM A105N, Low Carbon Steel LCB, LCC, LF2, Alloy Steel WC6, WC9, F11, F22, Stainless Steel CF8, CF8M, CF3, CF3M, A182 F304, F304L, F316, F316L, Duplex & Super Duplex Steel A890 GR. 4A, 5A or F51, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.

» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials

» Actuations can be equipped with Handwheel, Gear Device
